FEATURES
強大的最新的高功率365nm紫外LED集成。
高紫外線強度優良穩定的紫外輻射，在8000mw／cm2的光輸出。
操作瞬間-按下開關按鈕，筆立即達到完全功率。
使用壽命長-超過20000小時的紫外線LED壽命，耐腐蝕和陽極氧化的鋁燈體。
便攜式的體積小，重量輕，無線。在任何地方使用它。
充電器與液晶-快速充電，并顯示充電狀態。
Specifications:

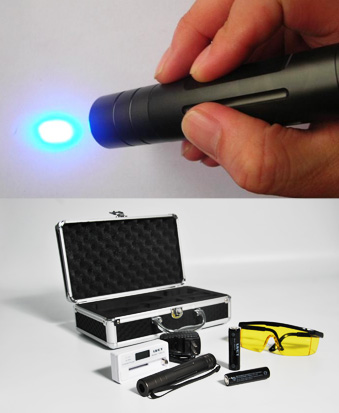

| Lamp Type | Cordless UV LED pen |
| Wavelength | 365±5nm |
| UV Light Spot Size | According to the optical lens |
| Power Supply 1 | One cell rechargeable Li-ion battery |
| Power Supply 2 | A/C100-240V adapter |
| Running Time | 3 hours powered by a battery |
| Running Time | Continuously running powered by the adapter |
| Dimensions | Length: 130mm; Diameter: 26mm |
| Weight (no battery) | 160g |
| Package | L280*W150*H100mm |
Optical Lens:
| Part No. | UV Light Spot Size | Irradiation Distance | UV Light Intensity |
| L03 | ?3mm | 7mm | 8000mw/ cm² |
| L04 | ?4mm | 14mm | 6000mw/ cm² |
| L05 | ?5mm | 16mm | 4500mw/ cm² |
| L06 | ?6mm | 17mm | 3100mw/ cm² |
| L08 | ?8mm | 25mm | 1700mw/ cm² |
| L10 | ?10mm | 25mm | 1000mw/ cm² |
| L12 | ?12mm | 25mm | 700mw/ cm² |
| L15 | ?15mm | 38mm | 500mw/ cm² |
| LL15x3 | 15*3mm | 11mm | 600mw/ cm² |
| LL20x5 | 20*5mm | 17mm | 400mw/ cm² |
